What Foundation Waterproofing Addresses for Southern California Homes
Foundation waterproofing is the application of systems and materials that prevent or manage water infiltration through foundation walls, footings, and slabs to protect the structural integrity of the foundation, the framing above it, and the living or crawl space enclosed within it. In Southern California, foundation moisture is a condition driven by a specific climate pattern: a long dry season during which concrete and masonry dry, contract, and develop or widen existing cracks, followed by a concentrated wet season during which rainfall can deliver a season’s worth of precipitation in a few weeks. That water saturates the soil adjacent to foundation walls, builds hydrostatic pressure against the exterior face, and drives through every available crack, joint, and porous section. For homes on raised foundations with crawl spaces, moisture infiltration creates conditions that deteriorate floor framing, support pest activity, and elevate interior humidity over time. For homes with below-grade spaces, it causes active water intrusion that damages finishes and stored materials and accelerates the deterioration of foundation concrete. The correct waterproofing approach depends on the source of the moisture, the type of foundation, the drainage context, and the access conditions at the property. Those factors vary enough between properties that a meaningful estimate requires a physical inspection rather than a general price per linear foot.
Foundation Waterproofing Methods We Use
Exterior Membrane Waterproofing

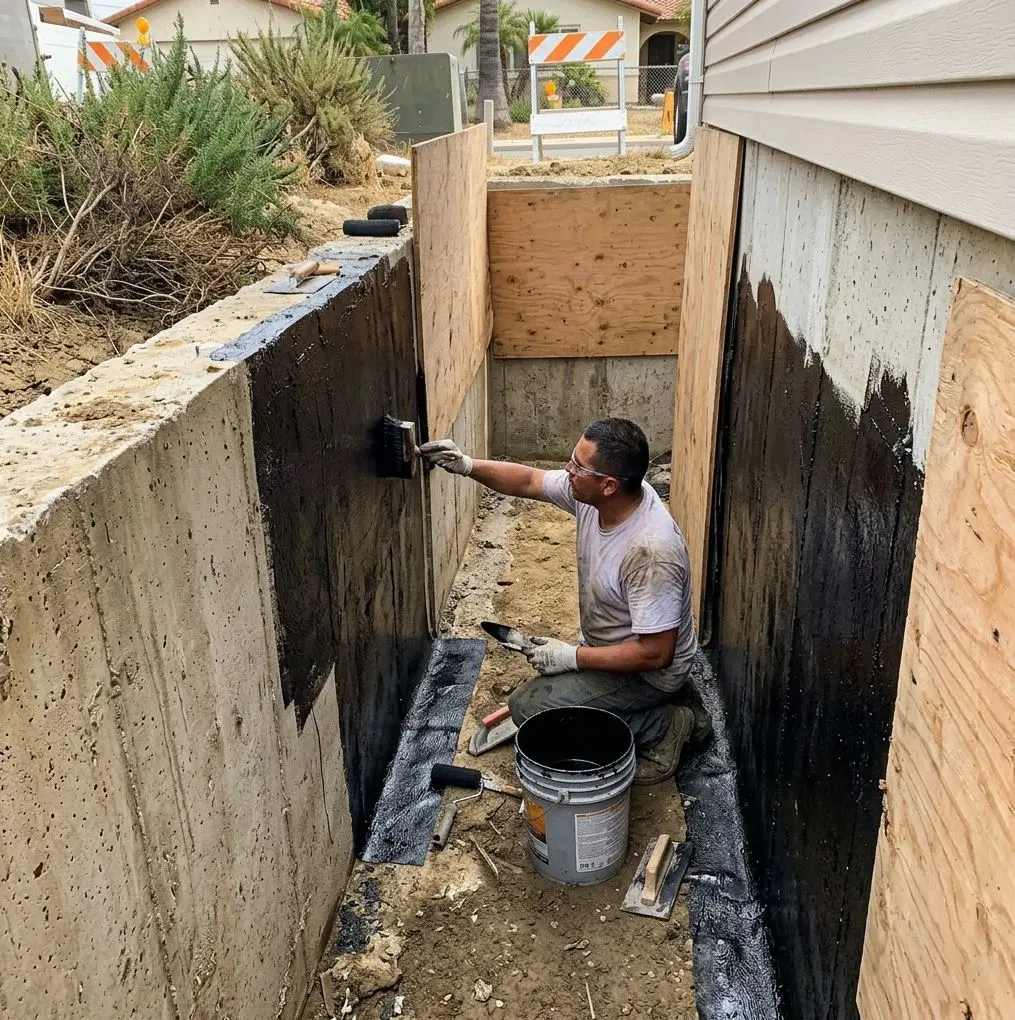

Exterior membrane waterproofing involves excavating the soil adjacent to the foundation wall down to the footing, cleaning the exterior face of the wall, applying a waterproofing membrane, installing protection board or drainage board against the membrane, and backfilling in layers with drainage aggregate and then compacted soil. It is the most comprehensive approach to foundation waterproofing because it prevents water from ever contacting the wall rather than managing water that has already entered it. Exterior membrane systems are appropriate when excavation is accessible at the property perimeter, when the moisture source is confirmed to be external hydrostatic pressure, and when the project scope warrants the higher cost of excavation and soil restoration. We assess excavation feasibility at every estimate visit and propose exterior waterproofing when it is the appropriate solution for the conditions, not as a default upsell.
Crystalline Waterproofing
Crystalline waterproofing uses a cementitious coating containing reactive silicates that, when applied to a damp concrete surface, penetrate into the concrete matrix and form insoluble crystals in the pore and capillary structure of the concrete. Unlike surface-applied membranes, crystalline compounds become part of the concrete itself and self-seal hairline cracks and pores throughout the depth of the wall rather than only at the surface. Crystalline products can be applied to the interior or exterior face of poured concrete foundations and are particularly effective for foundations experiencing capillary moisture absorption through porous concrete rather than active pressure infiltration through cracks. They are one of the most durable interior waterproofing options available for poured concrete walls, with effectiveness that does not depend on membrane adhesion or surface continuity.
Interior Drainage Board and Sealant Systems
Interior drainage board systems installed at the base of the foundation wall collect water that infiltrates through the wall and direct it to a perimeter drain, sump, or exterior outlet rather than allowing it to spread across the floor. Combined with a masonry sealant or crystalline coating on the wall face above the drainage board, this system manages water that cannot be fully excluded by interior treatment alone. It is the appropriate interior approach for foundations in Southern California, where exterior excavation is not practical due to property constraints, hardscape, or landscaping that cannot be disturbed. The system does not eliminate infiltration but prevents it from causing damage by providing a controlled drainage path.
Injection Waterproofing at Active Leaks
For foundation cracks or cold joints that are actively passing water, polyurethane foam or hydrophilic gel injection seals the active leak from the interior face. The injection material reacts with water in the crack and expands to fill the void, forming a flexible waterproof seal that accommodates minor future movement. Injection waterproofing at active leaks is often performed as the first step before applying a broader surface treatment, because active water flow must be controlled before any surface membrane can be applied correctly. We address active leaks as part of the broader waterproofing scope rather than as a separate preliminary project in most cases.
Below-Grade Crawl Space Waterproofing
For homes on raised foundations with below-grade crawl spaces that experience moisture infiltration through the foundation walls, interior waterproofing applied to the crawl space side of the foundation walls, combined with a ground vapor barrier and any required drainage improvements, creates a drier and more protected crawl space environment. This scope is coordinated with crawl space insulation work where both are needed, and the sequence is always waterproofing before insulation, so that the insulation is not installed over active moisture conditions.
Matching the Waterproofing Method to the Moisture Source
| Moisture Condition | Primary Cause | Recommended Approach |
|---|---|---|
| Seepage through porous concrete wall | Capillary absorption, no active crack | Crystalline sealant, interior or exterior application |
| Active infiltration through a visible crack | Crack providing a direct water pathway | Polyurethane injection into the crack, then surface treatment |
| Water entry at the floor-wall joint | Hydrostatic pressure at footing level | Interior drainage board with perimeter drain, or exterior excavation and membrane |
| Broad moisture infiltration across the wall face | Hydrostatic pressure from saturated adjacent soil | Exterior excavation with membrane and drainage board, or interior drainage system |
| Moisture in crawl space, no active crack | Capillary rise and ground evaporation | Interior foundation wall sealant plus a vapor barrier on the ground |
| Moisture recurring after prior repair | Drainage not corrected, system working against continuous pressure | Drainage correction first, then the waterproofing system appropriate to the remaining infiltration |
According to the Waterproofing Magazine, the most common reason foundation waterproofing systems fail prematurely is inadequate drainage adjacent to the foundation, which places the waterproofing under continuous hydrostatic pressure rather than occasional infiltration load. For Southern California homes where seasonal rainfall patterns create significant wet-season pressure against foundation walls, drainage correction is not an optional context for a waterproofing project. It is the component that determines whether the waterproofing system performs as intended for its full service life. For homeowners whose drainage situation needs to be addressed alongside waterproofing, our drainage correction service covers the grading, swale, and drainage system work that reduces the water pressure the waterproofing has to manage.
Our Foundation Waterproofing Process
Step 1: Free On-Site Moisture Assessment
A licensed Wise Choice estimator visits your property, inspects the foundation walls from both interior and exterior where accessible, identifies the locations and patterns of moisture infiltration, assesses the drainage context at the foundation perimeter, reviews any existing cracks that require repair before waterproofing, and confirms the foundation type and wall construction. The visit takes 60 to 90 minutes for most homes. You receive a written assessment identifying the moisture source and pathway, the recommended waterproofing approach, and why it was selected over alternatives, and a written itemized estimate before the end of the next business day, with no obligation to proceed.
Step 2: Drainage Review and Crack Repair Sequencing
Before waterproofing begins, we confirm that drainage conditions have been addressed where needed and that any foundation cracks requiring repair have been treated. Active leaks through cracks are sealed with polyurethane injection as the first step in the waterproofing sequence. For projects where drainage correction is part of the combined scope, that work is sequenced before or alongside the waterproofing installation, depending on the method being used.
Step 3: Surface Preparation
The foundation wall surface is cleaned, existing efflorescence and loose material are removed, and the surface is prepared to the requirements of the specific waterproofing system being applied. For crystalline systems, the surface must be clean and damp. For membrane systems, the surface must be clean, sound, and free of protrusions. For drainage board systems, the wall surface and floor-wall joint are prepared before board installation.
Step 4: Waterproofing Installation
The waterproofing system is installed according to the manufacturer’s specification and the scope documented in the estimate. Membrane applications are inspected for coverage continuity and holidays before the drainage board is installed against them. Crystalline applications are applied in the specified number of coats at the required coverage rate. Drainage board systems are secured, and perimeter drains are connected to the outlet point identified during the assessment. All components of the system are confirmed complete and connected before the area is restored.
Step 5: Backfill, Restoration, and Cleanup
For exterior excavation projects, the excavation is backfilled in layers with drainage aggregate at the wall face, then compacted soil, and the surface is restored. Hardscape, landscaping, or grading disturbed by excavation is restored to the pre-project condition as closely as the project scope allows. All materials, equipment, and debris are removed from the property before the crew leaves each day.
Step 6: Permit Inspection and Closeout
Where a permit was required, we coordinated the required inspections. At project closeout, you receive the 2-year workmanship warranty in writing, documentation of the waterproofing scope and materials used, photographs of the installation before backfill, where applicable, drainage system details, and permit documentation, where applicable. The closeout documentation is formatted to support disclosure requirements at resale.
If you are ready to understand what foundation waterproofing would cost for your home and which method is appropriate for your specific moisture conditions, request a free assessment online or call (818) 483-8055 to schedule an on-site visit.
Permits and California Requirements for Foundation Waterproofing
Interior waterproofing applied to existing foundation walls is generally permit-exempt in most Southern California jurisdictions. Exterior excavation waterproofing projects that excavate adjacent to the foundation may require a permit in some jurisdictions, particularly where the excavation depth approaches or exposes the foundation footing or where the excavation falls within a setback from the property line. We confirm the permit requirement for your specific project during the estimate visit and manage the application and inspection process where required.
California Building Code requires that below-grade foundation walls in new construction meet specific waterproofing standards depending on the soil drainage classification at the site. For existing homes undergoing waterproofing remediation, we work to those same standards as the practical benchmark for a durable and effective installation.
Why Southern California Homeowners Choose Wise Choice for Foundation Waterproofing
10+ Years Waterproofing Foundations Across Southern California
We have waterproofed foundations on Southern California homes across every foundation type, wall construction, and moisture condition the region’s housing stock presents. The combination of clay soils, seasonal rainfall, and aging foundations creates moisture problems that vary significantly between properties, and our estimators assess those conditions specifically rather than applying a standard package to every job.
Licensed and Insured General Contractor
Every foundation waterproofing project we perform is completed under our general contractor license by crew members fully covered by our insurance. You carry no liability exposure for the work our team performs on your foundation.
Method Selection Based on Moisture Source
We do not recommend the most expensive or most invasive waterproofing method by default. The method we propose is the one that addresses the specific moisture source identified during the assessment, at the appropriate cost and disruption level for that condition. Interior methods for conditions that interior methods can address. Exterior excavation for conditions that require it. That distinction saves homeowners significant cost and disruption when the interior approach is genuinely sufficient.
Drainage Integration Always Assessed
We assess the drainage context at every foundation waterproofing estimate visit and include drainage correction in the recommended scope where it is needed to support the waterproofing system. A waterproofing system installed without drainage correction, where drainage is contributing to the moisture problem, is one that will underperform its service life estimate. We do not allow that outcome without advising the homeowner of the drainage condition and its effect on the waterproofing system’s expected performance.
2-Year Workmanship Warranty
Our 2-year workmanship warranty covers all installation labor, including membrane application, crack injection, drainage board installation, and drain outlet work. If any workmanship-related moisture infiltration develops within two years under normal weather conditions, we return and correct it at no charge. The warranty is in writing and delivered at project closeout.
Financing Available
Financing is available for qualified homeowners, including $0 down options. Foundation waterproofing is frequently a project homeowners have deferred because the cost seems daunting, and each wet season of deferral accelerates the damage to the foundation and framing it was protecting. Ask about current financing programs when you schedule your assessment.
Wise Choice Remodeling has been waterproofing foundations on Southern California homes for more than 10 years. If your foundation is showing signs of moisture infiltration, the starting point is a free on-site assessment that identifies the source and the scope required to address it. Call (818) 483-8055 to schedule yours.
